Ultrasonic Non-Ferrous Metal Welding Machine
iSW30 Series
Main Features:
- 6th generation iQS operation system
- Built-in scanning gun for data acquisition
- Supportable to MES,DPS systems
- Stable workmanship
- Multiple welding modes
Description:
The welder is designed with the excellent structure of mechanics, as well as equipped with reliable distance and pressure drive system and pneumatic system of precise proportional valve to stably and reliably output. Six welding results can be on-line and off-line monitored to control welding quality at any time. Data storage on network provides intelligent quality management for customers.
Unique Advantages：
The 6th generation iQS operation system, multi-level password protection with hierarchical authorization.
Supportable to MES,DPS for real-time data management.
Profiling of the welding process
Built-in scanning port supporting four brands of scanning guns for data traceability.
Stable workmanship
Multiple welding modes
Multiple functions available for integration of an automatic production line.
Environment friendly and low impedance
Cost saving
High resistance to corrosion.
Main Technical Parameters:
Model | iSW30-3512 | iSW30-4008 |
Specification | ||
Frequency | 35KHz | 40KHz |
Power | 1200W | 800W |
Welding Force | 440N Max. | 380N Max. |
Control Voltage | 24V | |
Welding Stroke | 30mm | 20mm |

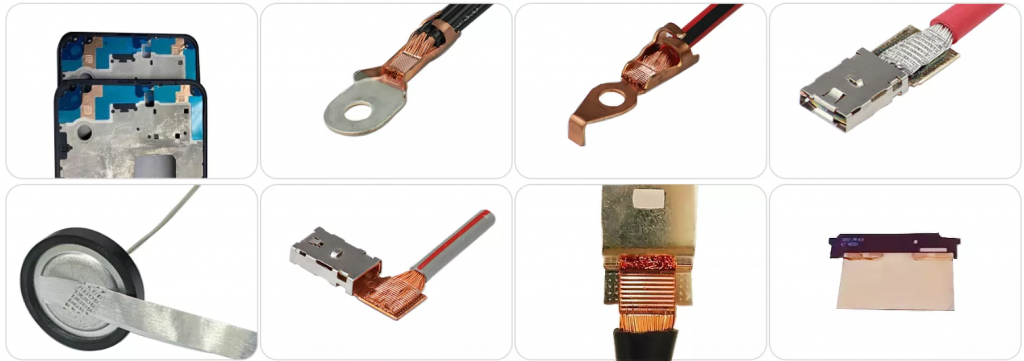

Application Cases:
Ultrasonic metal welding is provided worldwide as an ideal platform for an extensive battery-related applications, and its quality control is realizable by evaluating/monitoring the welding parameters for workmanship.
FAQ：
1. What’s your MOQ?
One Unit.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 10 days, while for big orders, 30-60 days is needed.
3. What’s the warranty of your ultrasonic products?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by the wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with the charge at the cost price.
4. How can I get your price and catalog?
Please E-mail us for price and download catalogs from our website: www.dongho.com.tr
5. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders; 30%T/T in advance as a deposit;70%T/T paid before shipment for big orders; or other terms by negotiation.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it’s not free.
8. Could you make it according to our special requirements?
Of course, please tell your product details and detailed requirement.
9. How about the quality?
Our factory has passed ISO9001 and has been awarded CE certificates. All parts are designed and manufactured in our own factory, and all the machines have to be tested before delivery with test report.
