Ultrasonic Generator With Touch Screen For Ultrasonic Welding Machine
GW-G Series
Main Features：
- Real-time frequency automatic tracking display
- Welding amplitude 10%-100% adjustable (1% accuracy)
- Support for scanning gun record welding data tracing
- 15KHz,20KHz,35KHz available
Description：
Ultrasonic generator is a device that converts our mains electricity (220V or 380V, 50 or 60Hz) into high-frequency AC electrical signals matched to the ultrasonic transducer of the ultrasonic system.It can also be called ultrasonic electrical box, ultrasonic source, ultrasonic power supply.
The GW series ultrasonic generator has compact structure and 7″ color wide display screen,all welding setting parameters can be set through the menu items of the generator,and different functions are modular display, setting parameters is more convenient, man-machine efficiency is more ideal;
Features：
Compact structure,simple and elegant appearance
Real-time frequency automatic tracking display
Welding amplitude 10%-100% adjustable (1% accuracy)
Mold impedance analysis + protection
Overload protection
Voltage and transducer voltage protection
Support for scanning gun record welding data tracing
Functions of different modules can be clearly identified,making parameter setting more convenient.
Main Technical Parameters：
Model | GW-AG1530 | GW-SG1530 | GW-AG2020 | GW-SG2020 | GW-AG3510 | GW-SG3510 |
Specification | ||||||
Frequency | 15KHz | 15KHz | 20KHz | 20KHz | 35KHz | 35KHz |
Power | 3000W | 3000W | 2000W | 2000W | 1000W | 1000W |
Triggering Method | Time | Time,Position | Time | Time,Position | Time | Time,Position |
Welding Method | Time/Energy/Power | Time/Energy/Absolute Position | Time/Energy/Power | Time/Energy/Absolute Position | Time/Energy/Power | Time/Energy/Absolute Position |
Voltage(V) | AC220V±5% 50/60Hz | |||||
Dimension(L*W*H)mm | 245mm*410mm*140mm | |||||
Weight(kg) | 6.7kg | |||||
Details Show：

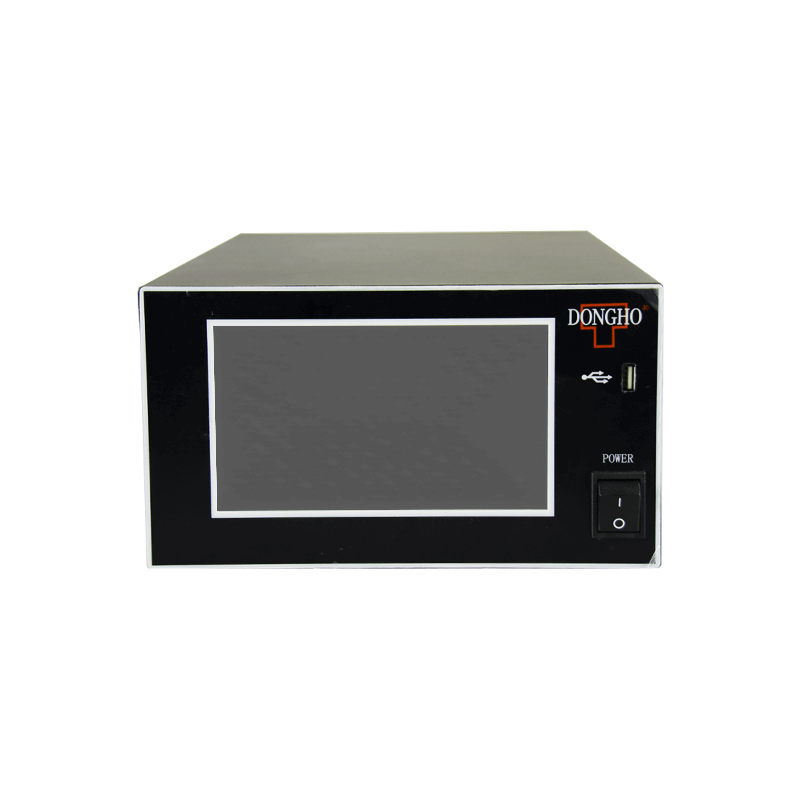

USB PORT PROVIDED
Support for scanning gun record welding data
tracing,easy for management.
ELEGANT APPEARANCE
Compact structure,simple and elegant appearance

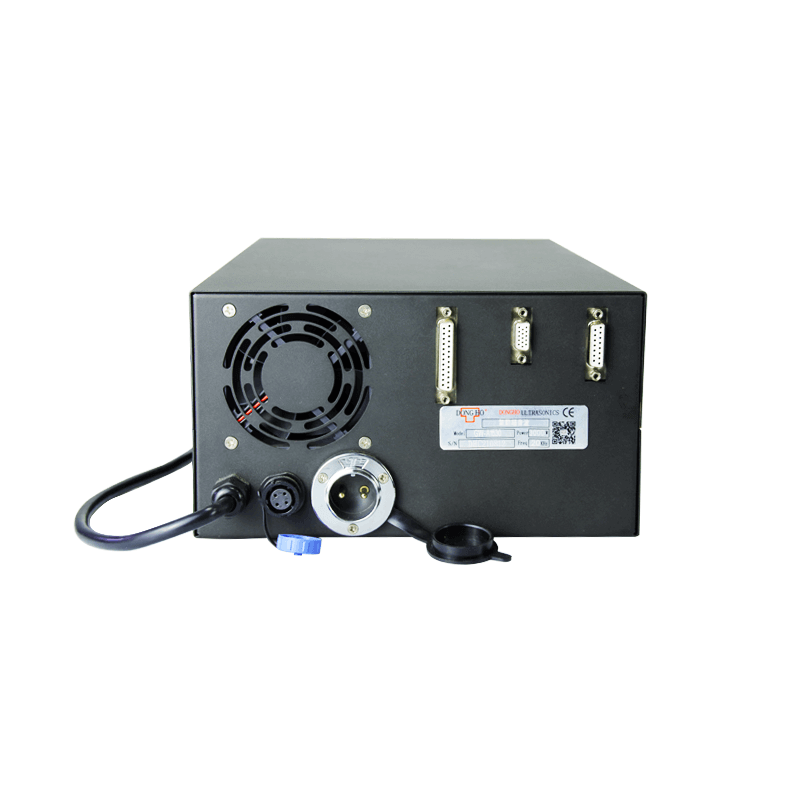

DIFFERENT FUNCTIONS PORTS
Multifunctional input and output ports,
comprehensive functions, and convenient
for users to use
FAQ：
1. What’s your MOQ?
One Unit.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 10 days, while for big orders, 30-60 days is needed.
3. What’s the warranty of your ultrasonic products?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by the wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with the charge at the cost price.
4. How can I get your price and catalog?
Please E-mail us for price and download catalogs from our website: www.dongho.com.tr
5. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders; 30%T/T in advance as a deposit;70%T/T paid before shipment for big orders; or other terms by negotiation.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it’s not free.
8. Could you make it according to our special requirements?
Of course, please tell your product details and detailed requirement.
9. How about the quality?
Our factory has passed ISO9001 and has been awarded CE certificates. All parts are designed and manufactured in our own factory, and all the machines have to be tested before delivery with test report.
