Multiple-Function Super Precision Pneumatic Ultrasonic Plastic Welder
iAG Series
Main Features：
- 6th generation iQS operation system
- Modularized structure for easy expansion
- Built-in scanning gun for data acquisition
- Seven welding modes available
- Powerful welding process control with weld graph
- Digital amplitude setting, amplitude segmentation and distance segmentation available
Description：
It’s innovative high performance machine for more applications. It is equipped with DONGHO pneumatic system, iQS system, DONGHO-certified Proportion Valve technology, available in multiple welding modes. It’s a fully electronic welder and device which meets the requirements of industries of medical treatment, automotive manufacturing and consumer electronics in the aspect of consistency, data traceability and safety through Ethernet connectivity for operation process, multi-level password protection, data connectivity for support of Industry 4.0 applications, and IDCS interconnection service for remote monitoring and data collection. With Dongho welders, the product quality can be perfectly controlled in conjunction with the scanning gun for collecting the barcodes in moulds and workpieces, as a result of connection to MES system.
Eight Unique Advantages：
Powerful welding process control with weld graph.
Digital amplitude setting, amplitude segmentation and distance segmentation available.
The 6th generation iQS, multi-level password protection.
100% digital ultrasonic generator and line voltage regulation.
Modularized structure for easy expansion.
Seven welding modes: time, relative position, absolute position, energy, peak power, Max. pressure, grounding detection.
UTC multi-core control: high processing rate for enhancement of tracking precision, configured with MES, DPS system and connected to PC configuration for real-time data management.
Built-in scanner guns supportable by four brands for data traceability.
Main Technical Parameters：
iAG-F Series:
| Model | iAG-F S2025e | iAG-F S2030e | iAG-F S2040e | iAG-F S3015e | iAG-F S3512e | iAG-F S4008e |
| Frequency | 20KHz | 20KHz | 20KHz | 30KHz | 35KHz | 40KHz |
| Power | 2500W | 3000W | 4000W | 1500W | 1200W | 800W |
| Triggering Method | Time/Pressure/Position/Power | |||||
| Welding Method | Weld time/Relative position/Absolute position/Weld energy/Peak power/Max.pressure | |||||
| Pneumatic control | proportional valve | |||||
| Operation pressure method | standard/multiple stage | |||||
| Amplitude control | Single amplitude/stepping amplitude /distance amplitude | |||||
| Multifunctional control(I/O) | 3 sets of input | |||||
| Pre-vibration function | 1)OFF 2)time 3)position | |||||
| Cylinder stroke(mm) | 100mm≤2mm | 80mm≤3.2mm | ||||
| Max.weld time | 5 Seconds | |||||
| Voltage source (V) | AC220V±5% 50/60Hz | |||||
| Dimension (L*W*H)mm | 500*750*1100mm | 470*720*950mm | ||||
| Weight(kg) | 106kg | 75kg | ||||
iAG Series:
| Model | iAG S2025e | iAG S2030e | iAG S2040e | iAG S3015e | iAG S3020e | iAG S3512e | iAG S4008e |
| Frequency | 20KHz | 20KHz | 20KHz | 30KHz | 30KHz | 35KHz | 40KHz |
| Power | 2500W | 3000W | 4000W | 1500W | 2000W | 1200W | 800W |
| Triggering Method | Time/Pressure/Position/Power | ||||||
| Welding Method | Weld time/Relative position/Absolute position/Weld energy/Peak power/Max.pressure/Ground detect | ||||||
| Pneumatic control | Proportional valve | ||||||
| Operation pressure method | standard/multiple stage | ||||||
| Amplitude control | Single amplitude/stepping amplitude /distance amplitude | ||||||
| Multifunction control(I/O) | 3 sets of input/3 sets of output | ||||||
| Pre-vibration function | 1)OFF 2)time 3)position | ||||||
| Welding stacking function | time/position/energy/pressure | ||||||
| Cylinder stroke(mm) | 100mm≤2mm | 80mm≤3.2mm | |||||
| Max.weld time | 5 Seconds | ||||||
| Voltage source (V) | AC 220V 50/60Hz | ||||||
| Dimension (L*W*H)mm | 500*750*1100mm | 470*720*950mm | |||||
| Weight(kg) | 106kg | 75kg | |||||
Accessory Expansion of The Ultrasonic Welding Machine：
- Noise insulation shield
- Automatic film winding device
- Auxiliary fixture function *3
- Safety curtain
Details Show：
USB PORT PROVIDED

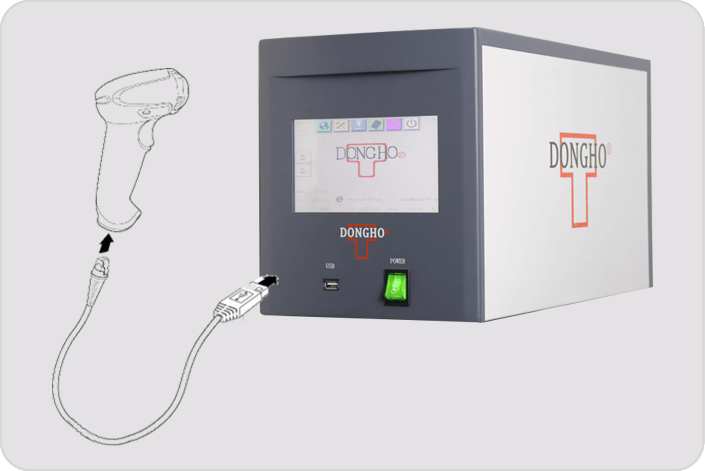

Built-in scanner guns supportable
by four brands for data traceability.

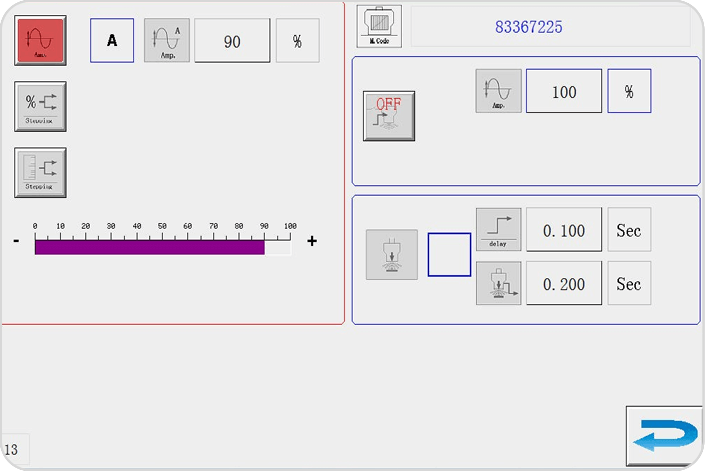

DIGITAL AMPLITUDE SETTING
Digital amplitude setting, amplitude
segmentation, and piecewise distance.

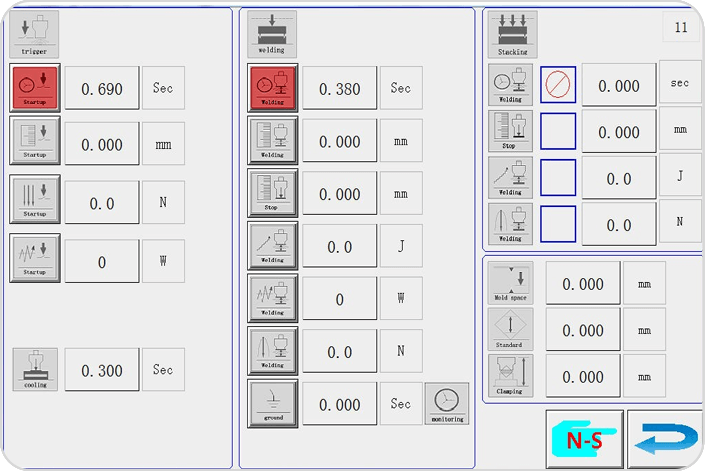

SEVEN WELDING MODES
Advanced 7 welding modes: Time,
Relative Position, Absolute Position, Energy, Peak Power, Max. Pressure,
Grounding Detection
