High Power Pneumatic Ultrasonic Plastic Welder 15KHz For Large Parts
iAL Series
Main Features:
● 6th generation iQS operation system
● Auto frequency tracking and locking system
● 100% digital amplitude setting
● Quality QA diagnostic control
● Clearance offset function and double-feedback control framework
Description:
The ultrasonic welding system of iAL series welders can be used to weld thermoplastic materials, and to weld and separate textiles and plastics no matter the workpieces are large or extra large in size for applications. Dongho machine frameworks are rigid and durable, designed in modules which can ensure the consistence and flatness of products during the rapid and high-pressure operation. Such rigid equipment are equipped with precise guiderail and mature driving components, it is Dongho patented welder. After integrating the controlling system with the ultrasonic generator, this machine can carry out process control to its maximum extent. Different welding modes can achieve optimized ultrasonic welding treatment on the workpieces.
Six Unique Advantages:
The 6th generation iQS operating system
100% digital amplitude setting
Clearance offset function and double-feedback control framework
Auto frequency tracking and locking system
Safe and convenient sensing switch of new touch mode for easier usage
Welding parameters record and QA diagnosis and control
Main Technical Parameters:
Model | iAL S1550 | iALB S1550 |
Specification | ||
Frequency | 15KHz | 15KHz |
Power | 5000W | 5000W*2 |
Max working Stroke(mm) | Φ100*100mm±1mm | |
Max Welding Time | 5s | |
Welding Method | time,energy | |
Voltage(V) | AC220V±5% 50/60Hz | |
Dimension(L*W*H)mm | 1200*1150*1950mm | |
Weight(kg) | 350kg | 405kg |
Application Fields And Industries:
iAL rigid and durable ultrasonic welding system is applicable to the production fields with workpieces in large size, such as the medical treatment industry, automotive industry, commercial or consumer electronics markets for riveting, cutting and sealing of thermoplastic materials.

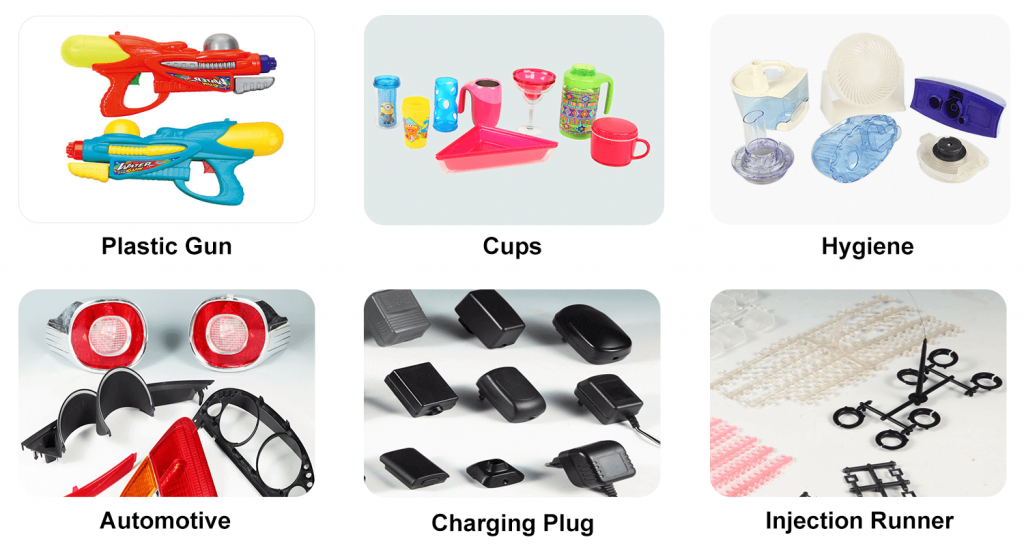

Application Cases
FAQ：
1. What’s your MOQ?
One Unit.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 10 days, while for big orders, 30-60 days is needed.
3. What’s the warranty of your ultrasonic products?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by the wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with the charge at the cost price.
4. How can I get your price and catalog?
Please E-mail us for price and download catalogs from our website: www.dongho.com.tr
5. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders; 30%T/T in advance as a deposit;70%T/T paid before shipment for big orders; or other terms by negotiation.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it’s not free.
8. Could you make it according to our special requirements?
Of course, please tell your product details and detailed requirement.
9. How about the quality?
Our factory has passed ISO9001 and has been awarded CE certificates. All parts are designed and manufactured in our own factory, and all the machines have to be tested before delivery with test report.
