Digital Pneumatic Ultrasonic Plastic Welder With Color Touch Screen
GW Series
Main Features：
● 6th generation iQS operation system
● Built-in scanning gun for data tracing
● USB-saved welding parameters
● Quality QA diagnostic control
● Mounted lifting motor for structural adjustment
● Modular structures with multiple welding modes
Description：
The GW series ultrasonic plastic welder is integrated with an ultrasonic digital generator and controllers , equipped with multiple welding modes and future-oriented iQS operating system. Sturdy framework with accurate and well-practiced driving components can meet the conventional welding requirements in the market. The welded parts strength is close to the strength of raw materials. They have powerful functions to obtain a unique effect and meet the needs for welding various products. The ultrasonic technology can promote the production efficiency and product aesthetics.
Features:
6th generation iQS operation system
Built-in scanning gun for data tracing
Mounted lifting motor for structural adjustment, convenient and effortless.
Modular structures with multiple welding modes designed for the whole series of welders
Metal die-casted stand column in square structure with high-performance rigidity
USB-saved welding parameters and quality QA diagnostic control
Auto-tuning of ultrasonic frequency, overload protection system and malfunction alarm.
Main Technical Parameters:
Model | GW-AS1530 | GW-AS2020 | GW-SS1530 | GW-SS2020 |
Specification | ||||
Frequency | 15KHz | 20KHz | 15KHz | 20KHz |
Power | 3000W | 2000W | 3000W | 2000W |
Triggering Method | Delay Time | Delay Time | Delay Time,Position | Delay Time,Position |
Welding Method | welding time/welding energy/Max. power | welding time/welding energy/Absolute Position | welding time/welding energy/Max. power | welding time/welding energy/Absolute Position |
Max working Stroke(mm) | 80mm±1mm |
Max Welding Time | 6s |
Voltage(V) | AC220V±5% 50/60Hz |
Dimension(L*W*H)mm | 350mm*622mm*1140mm |
Weight(kg) | 96.5kg |
Accessory Expansion of The Ultrasonic Welding Machine:
- Noise insulation shield
- Automatic film winding device
- Auxiliary fixture *2
- Safety curtain for protection
Details Show：

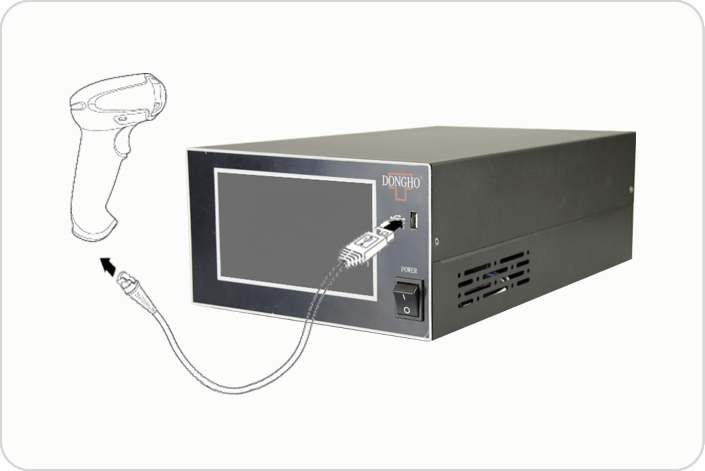

USB PORT PROVIDED
Built-in scanner guns supportable
by four brands for data traceability.

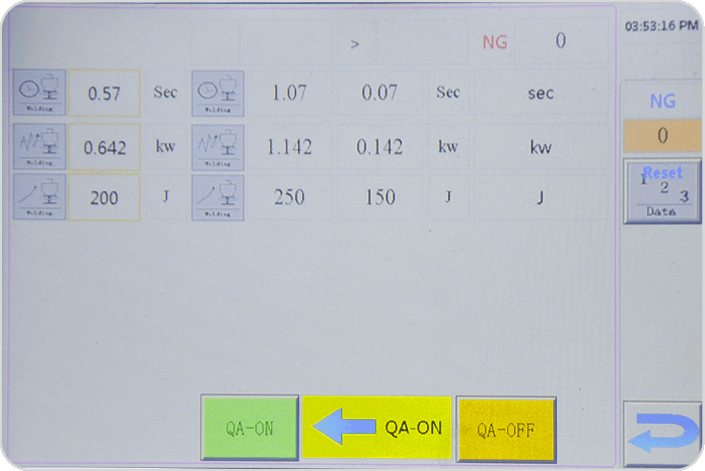

QA DIAGNOSTIC CONTROL
Parameters can be set easily for QA
diagnostic control.

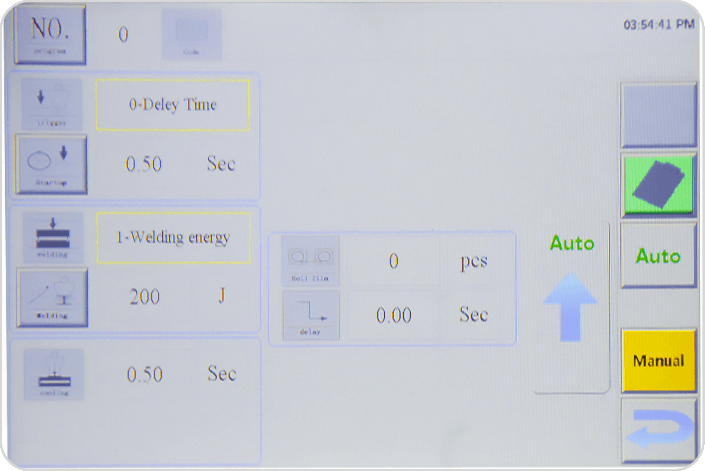

MODULAR STRUCTURES
Modular structures with multiple
welding modes for the whole
series of the welder.

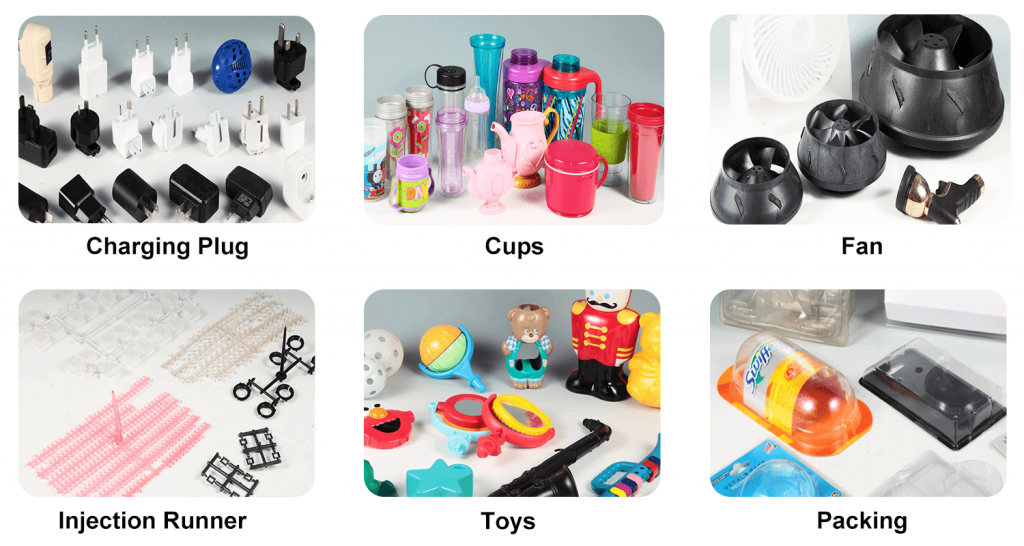

Application Cases
FAQ：
1. What’s your MOQ?
One Unit.
2. How about your delivery time?
Usually, we have some stock for trial or small orders, so just deliver them within 10 days, while for big orders, 30-60 days is needed.
3. What’s the warranty of your ultrasonic products?
One year Warranty for machines and 3 months warranty for tooling if it is not damaged by the wrong operation.
During the warranty period, our factory will be responsible for repairing it for free or send the new parts to the customer to replace the broken parts for free. After the warranty time, our factory will repair it or send the new parts with the charge at the cost price.
4. How can I get your price and catalog?
Please E-mail us for price and download catalogs from our website: www.dongho.com.tr
5. Can we be your agent in our country or city?
Of course. We are looking for agents or distributors who are willing to cooperate with us for a long business term.
6. How about payment?
100%T/T in advance for small orders; 30%T/T in advance as a deposit;70%T/T paid before shipment for big orders; or other terms by negotiation.
7. Do you provide samples? Is it free or extra?
Yes, we could offer the sample and it’s not free.
8. Could you make it according to our special requirements?
Of course, please tell your product details and detailed requirement.
9. How about the quality?
Our factory has passed ISO9001 and has been awarded CE certificates. All parts are designed and manufactured in our own factory, and all the machines have to be tested before delivery with test report.
